so looks like the bare minimum of 4 cables ill have running under the window.
1 usb cable from Mac to rack feeding a 10 way usb 3 hub (this will also power the 4 way midi I/O box)
1 extension cable to power 2 x 8 gang sockets which will hang on back of rack one either side.
2 x audio cables (left & right) from Mixer on rack to Audio interface.
Bingo, all ordered from Amazon, just the wait game.
When i made ‘Acanthus’ 9 years ago a guy contacted me from Newcastle and asked me if id make him a version with a different bass, that version i lost i couldn’t find the project anywhere, then today i found the alternative bass version on an old reel to reel, crazy how this Tandberg 3000x is 49 years old, I’ve never serviced it since i got it over 10 years ago and it still plays ok

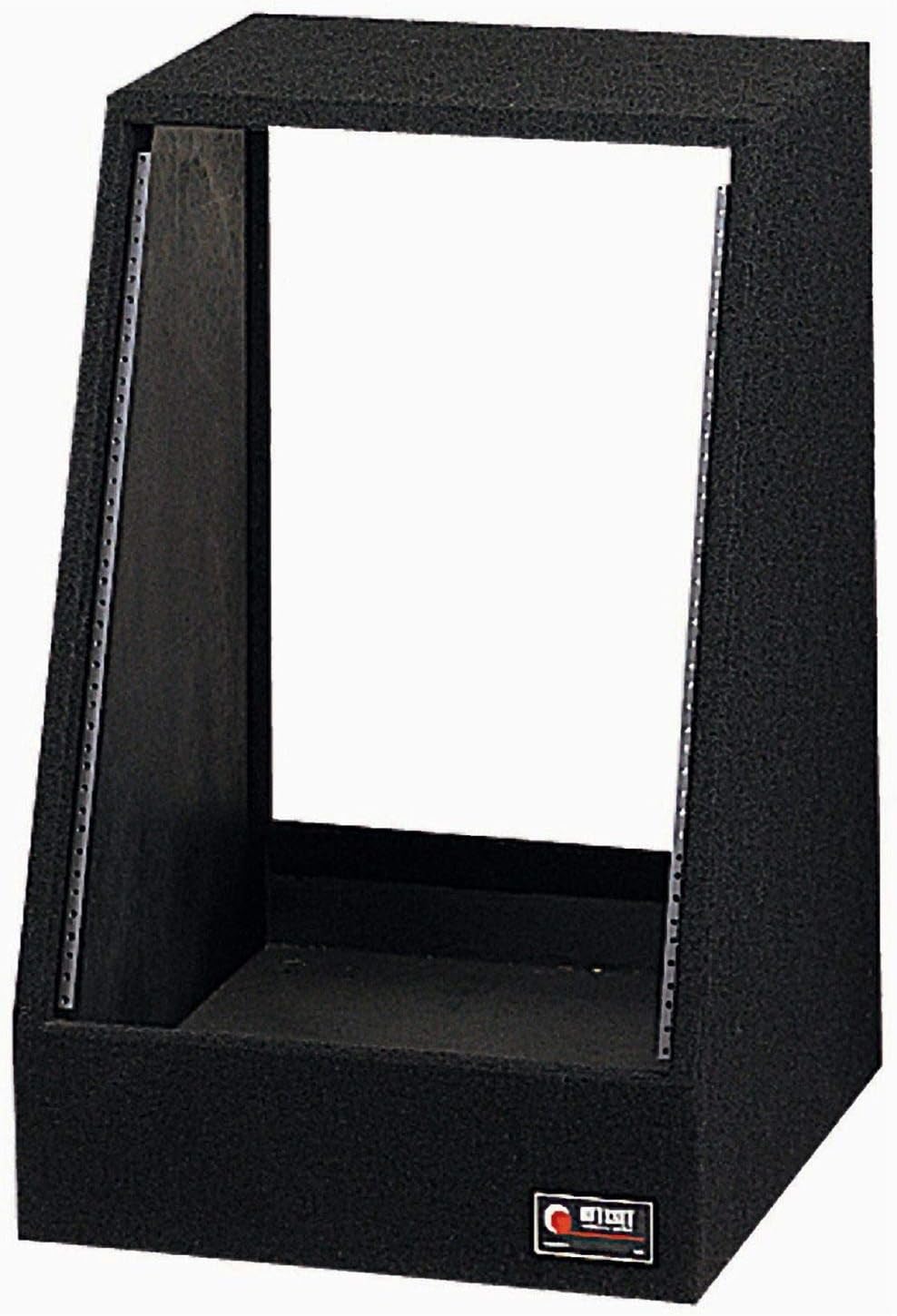

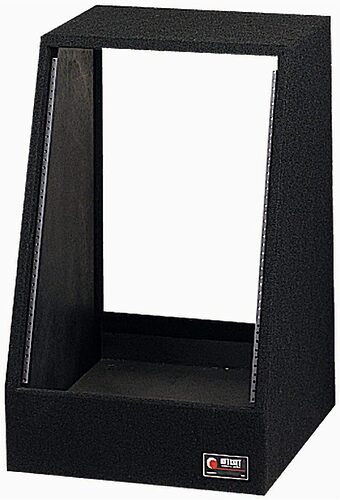

So I’m thinking about picking this up to hold my audio interface(s), power distribution, and give me some free space for effects later on (I could see an Alesis 3630 in my future to start). The height would also be good for putting my laptop on next to the rest of my hardware while I work. My question is do any of you have experience with stuff like this? Anything I should consider when buying a rack?
In addition to my previous comment, that seems really expensive for 14U. I know its carpeted and all that. You can defo get cheaper than that check zzounds.com or try buidling something like @Artificer suggested
Thanks for the ideas. @Artificer I’m little bit handy, my dad works in construction and has nice tools I can always borrow. His expertise, he is a bit less forthcoming with, but I can saw straight and level.
I thought the pricing on these things in general was a bit weird. It seemed like it kind of jumped from $50 ones I wouldn’t trust to $200+ overbuilt things. Sounds dumb but I wasn’t sure where else to look because Reverb didn’t have much.
Just eyeballing the dimensions, I’d think you could get by with a half sheet (4x4) of 3/4 ply. You wouldn’t even need the nicer stuff if you cover it in carpet. Like $20 in wood, or spring for some slightly better finish ply and stain or paint it. 2" screws to put it together. Four harbor freight casters (like $10, grab that coupon!). I don’t see 14U rails on Amazon, but 12U Gator rails are around $20.
I figure for a days time and around 1/5 the price you get something that’ll outlast you. Spend the other $200 on something to put in it.

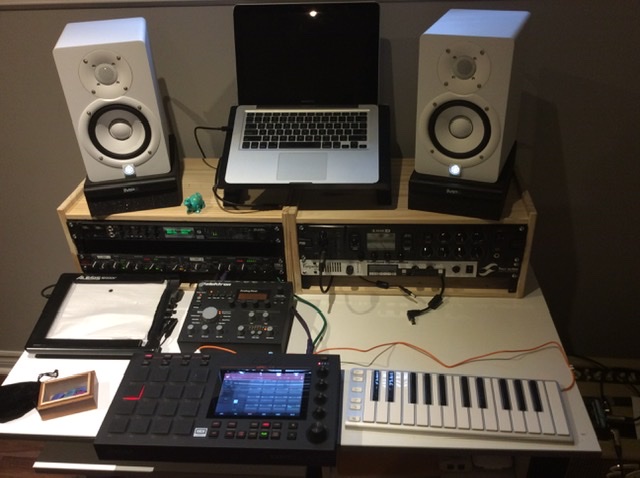

You can get ikea rast bedside tables (iirc) they are the exact with of a rack and are like 20 bucks each. They fit 4 rack ears exactly.
It’s what I used to build my desk.

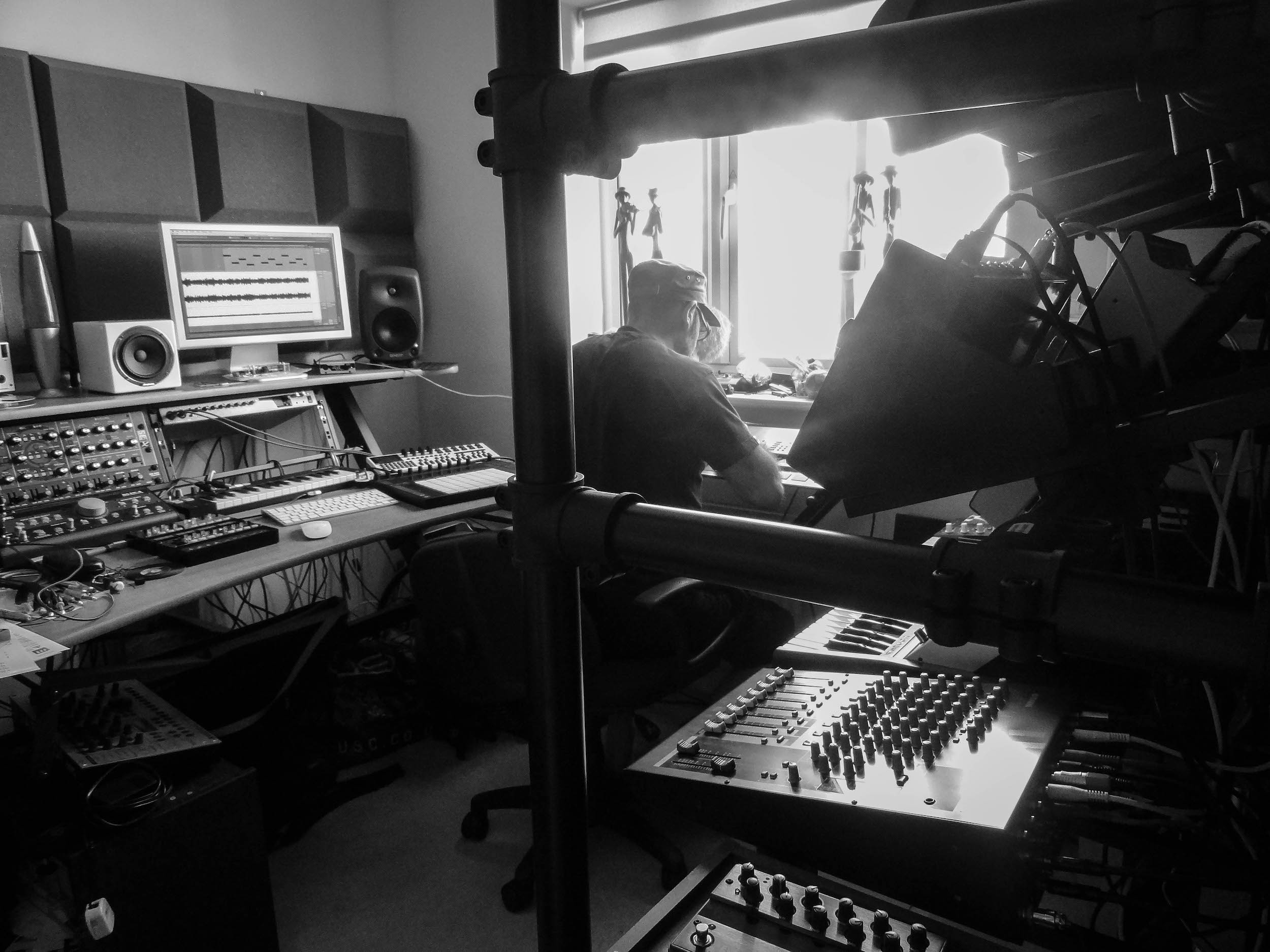

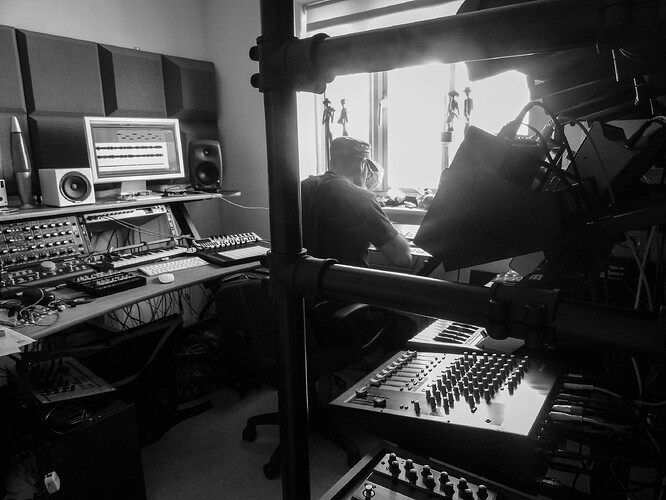

Lol, I don’t think I own anything from this picture anymore, im a geardiot
Yeah, I wasn’t married to the carpet, I had concerns about that too. Dimensions were a primary concern. I like what Artificer is suggesting. I found rails of all different U height at sweetwater. I could probably spring to have a nice sheet of plywood cut for me at home depot, and then I don’t mind sanding and painting or staining it. Just have to wait for the weather to clear up.

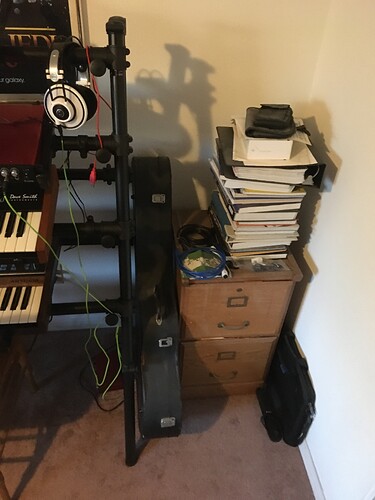

The dimensions matter because it’s going to replace this here filing cabinet, I’m going to throw out my woefully out of date textbooks, and it will be a nice place to put my laptop when I’m seated in front of the keyboards, so I might record them a bit more often.
It’s cool, I drew up some plans today with a few tweaks:
3-inch casters with locking wheels rated for 250 pounds apiece, because I have carpet and 2-inch office chair wheels are a nightmare in this stuff, so hopefully the larger casters are less hellish to move. Also that’s close to 3 times the weight rating of 2-inch casters.
Some extra dead space on top. If need be, I can take a hole saw to that later and add 80mm computer case fans and power them from a USB plug mounted internally (since I’ll have power distribution rack-mounted anyways) without having to give up rack space.
16U of rack space because I found a supply website with 14 and 16U rails for the same price, but the math gets easier with 16U of rack space and at the angle I will be at, only about 3/4 of an inch taller.
I might need to modify the drawings a bit, IDK why I was thinking I would mount the front facing boards from the front, it would be so very much cleaner from the sides. So I need to shorten those a bit. And I’m thinking I’ll put a few 2 x 4’s in the bottom to brace the sides and give the casters a deeper mount than just straight plywood.
Yesterday i set myself a task of producing a track working in the constraints of using just a 1988 Yamaha PSS-680 toy keyboard found at a car boot sale and a oto Bam as its designed to mimic 70s/80s crappy reverb units.
Once you start tweaking the 680’s modulation levels it sounds great, with a splash of reverb of course. Last night this led me down a rabbit hole trying to get a vst PSS-680 midi editor to work in ableton live without success (can’t get midi out) as id of loved to draw in the modulation, but today i will carry on the fight regardless
